Msr/IC/NFC QR Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)

 Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal HCC-Z100C Version HCC-Z100CWithout EMV or PCI certificate versionHCC-Z100EMV L1,L2 and PCI certificate version 1. Provide EMV/PCI kernal;2. Anti-tamperGeneralThe HCC-Z100C is the cutting-edge secure electronic payment terminal powere

Featured Products


Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal HCC-Z100C

Version
HCC-Z100CWithout EMV or PCI certificate version
HCC-Z100EMV L1,L2 and PCI certificate version
1. Provide EMV/PCI kernal;
2. Anti-tamper

General
  • The HCC-Z100C is the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
  • Empowered by Quad-core CPU and massive memory, HCC-Z100C enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Features

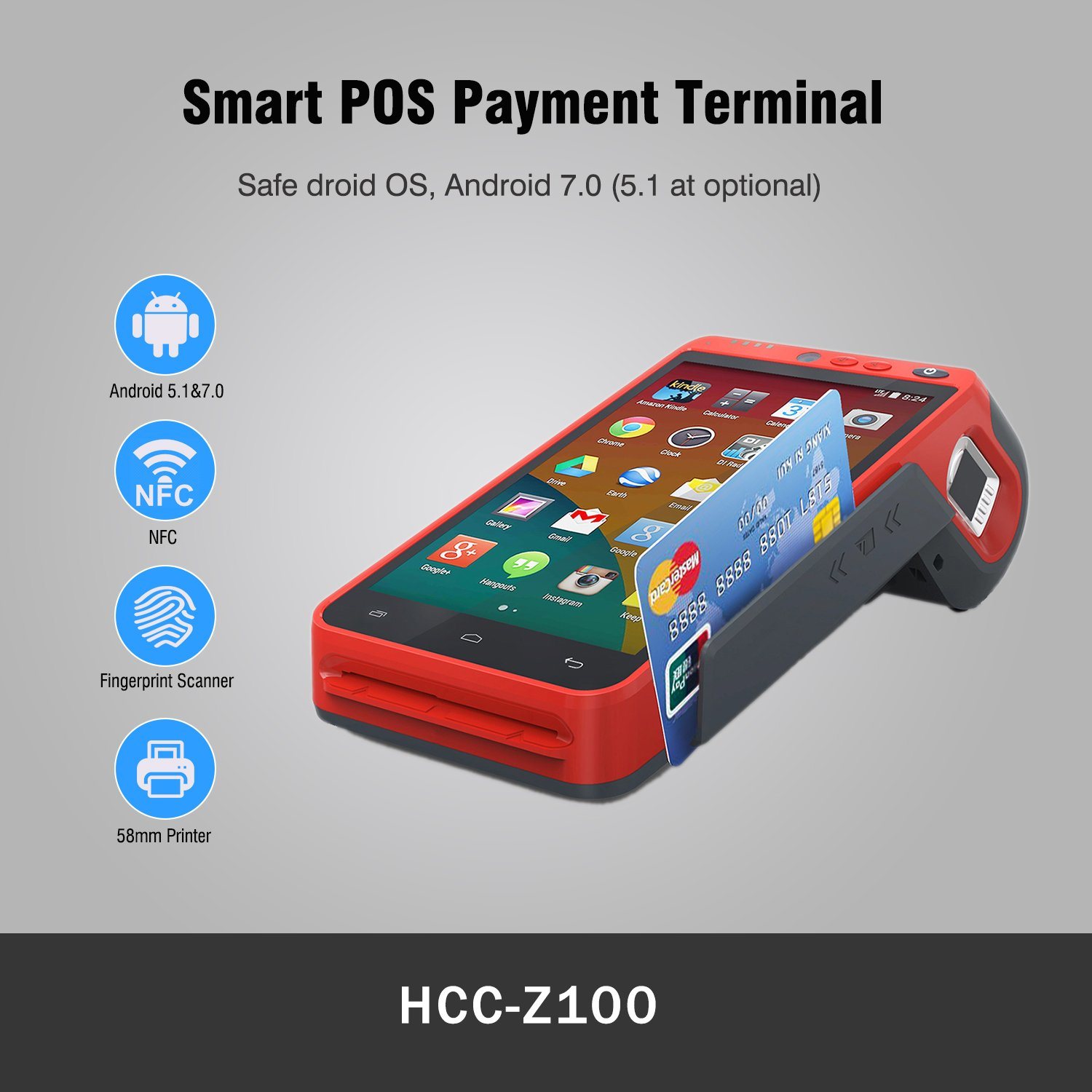

  • Safe droid OS, Android 7.0
  • 5.5 inch TFT IPS LCD, resolution 1280*720;
  • Built-in high speed 58mm thermal printer , with over 50Km print life
  • Full bands for global coverage: 4G/3G/2G,WLAN,VPN
  • Authentec,508dpi fingerprint module for biometric identification
  • Dual camera for quickly QR code scan & Symbol 2D scanner as option
Specifications
Basic
Characteristics
OSSafedroid OS (based on Android 7.0)
CPUQuad-Core 1.35GHZ
ROM8GB ROM EMMC
RAM1G RAM LPDDR3

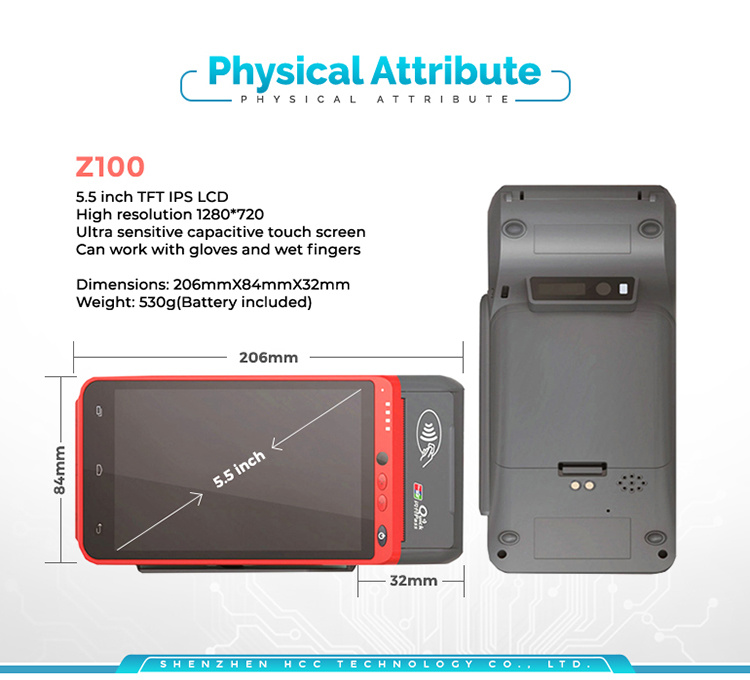

Display5.5 inch TFT IPS LCD resolution 1280*720
PanelUltra-sensitive capacitive touch screen, can work with gloves and wet fingers
Dimensions206mm*84mm*32mm (max 56mm)
Weight530g(Battery included)
Keys3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
3 Virtual keys: Menu, Home, Back
InputChinese/English ,and supports handwriting and soft keyboard
Radio CommunicationWIFIIEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
BluetoothBT 4.0 LE +EDR
4GTD-LTE:Band38, Band39, Band40, Band41
FDD-LTE:Band1,Band3,Band7,Band8,Band20
3GUMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
TD-SCDMA:Band34,Band39
2GGSM/GPRS/EDGE:850/900/1800/1900MHZ
PaymentMagnetic Card readerSupports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card readerSupports ISO7816 standard;
AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,
AT88SC101,AT88SC102,AT88SC153,AT88SC1608,SLE4442,SLE4428;
Contactless Card readerSupports 14443A / 14443B,NFC-F(JIS 6319-4),NFC-V(ISO 15693),
ISO-DEP(ISO 14443-4),FeliCa,MIFARE,DESFire
Expansion and peripheralsPrinterHigh-Speed Thermal Printer
58mm printing paper
40mm paper roll
Camera5MP camera with LED flash and auto-focus function
Satellite PositioningGPS, Supports A-GPS
AudioSpeaker ,Microphone, Earphone
InterfacesMicro SD Card Slot1 PCS
SIM Card Slot2 PCS MICRO SIM
PSAM Card Slot2 PCS Conforms to ISO7816 standard
USB Port1PCS TYPE C USB
PowerBatteryLi-ion battery, 7.4V /2600mAH
Charging PortType C USB Port ,5V DC,2A
EnvironmentOperating Temperature-10°C to 50°C
Storage Temperature-20°C to 70°C
Humidity5% to 95% Relative Humidity, Non-Condensing
CertificationElectromagneticCE, FCC, ROHS
Anti-tamperWithout Anti-tamper function
OptionalFingerprintSemiconductor capacitance
18mm x 12.8mm imaging area
256 x 360 pixel array
Crossmatch FBI certified

508dpi
Front camera2 Megapixel Fixed Focal Camera
Barcode ScannerHoneywell 2D Image Engine, Support 1D and 2D symbologies
PositioningGLONASS, Bei-Dou satellite navigation system
Fiscal ModuleRussian format
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)

Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)
Our Company

Our Company
Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)Msr/IC/NFC Qr Code Handheld Biometric Fingerprint Android POS Terminal (HCC-Z100C)

FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba)  and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
